Mini semi-trailer for American pick-up trucks/or EU tractor with conversion to a tractor unit
For sale is a high-quality mini semi-trailer for fifth wheels from American pick-ups. Ideal for transport tasks, mobile concepts or individual special structures.

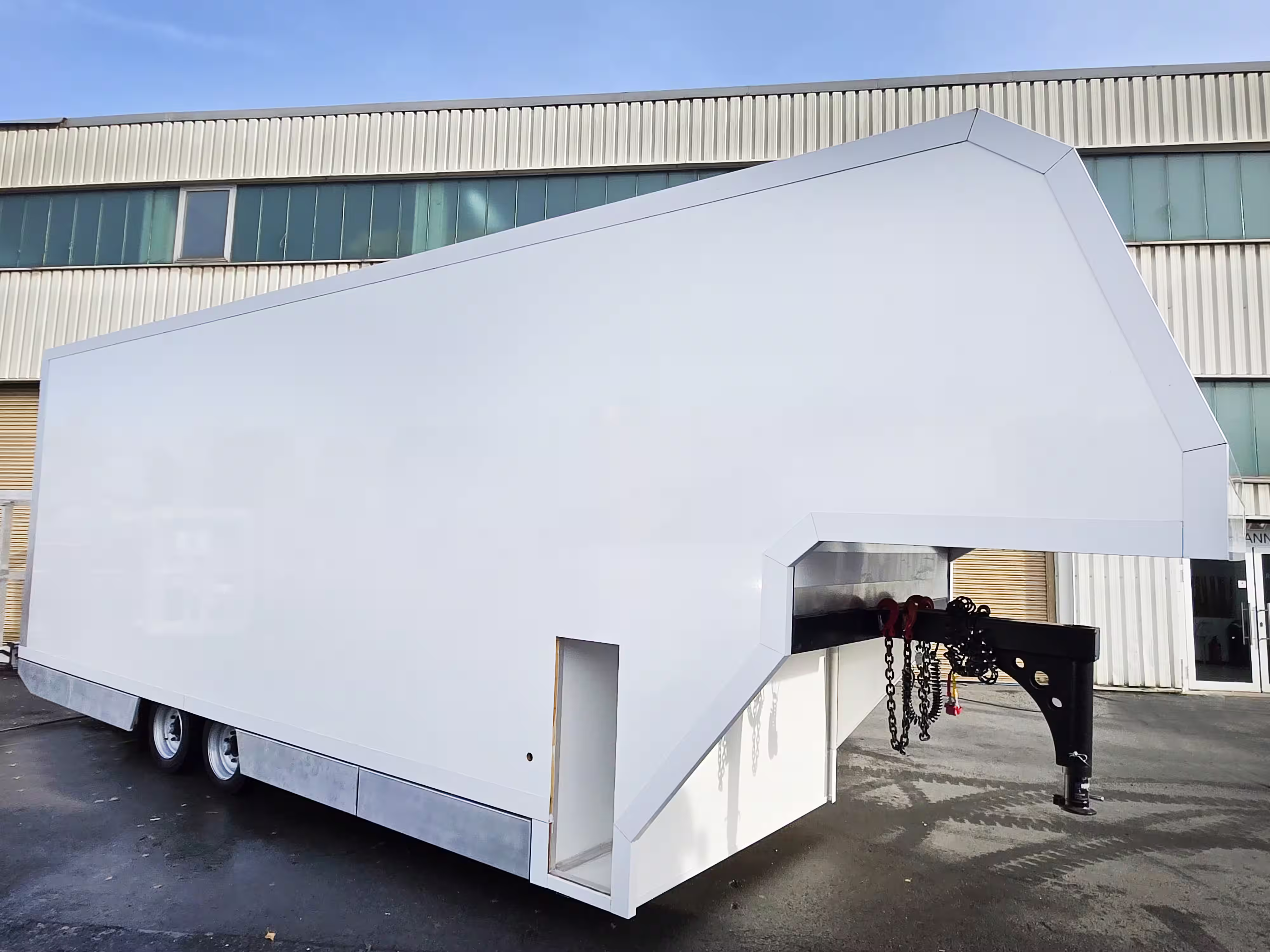

The structure consists of robust GRP sandwich panels in pure white and offers a sturdy, durable construction. With a total length of 10 m, a width of 2.30 m and a height of 3.80 m, there is plenty of space available for a wide range of applications. Depending on the configuration, a payload of up to 2,900 kg is possible.
The weight-optimized chassis with two axles weighing 3,000 kg in combination with the compressed air brake system (two-line) with EBS from WABCO ensures safe handling. The entire outdoor lighting is designed using modern LED technology and is, of course, StVZO compliant.
Highlights & equipment:
- Coupling system for American pick-ups including EBS and air couplings

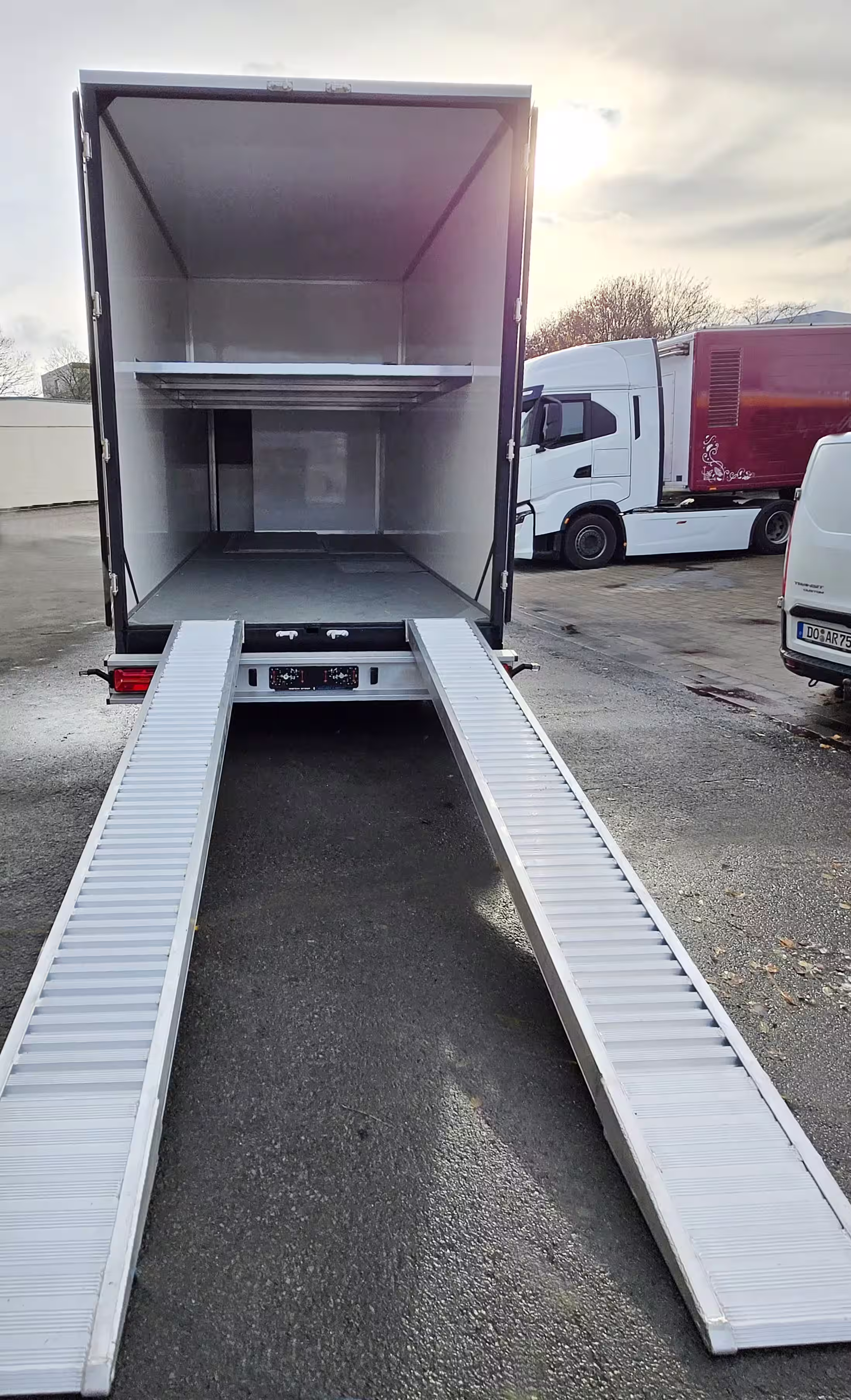

- Manual access ramp at the rear with the lowest possible access angle
- Double wing door at the rear with lock via 2 rod locks
- Lateral fixation of the ramps in the interior
- Side flaps for easy load securing

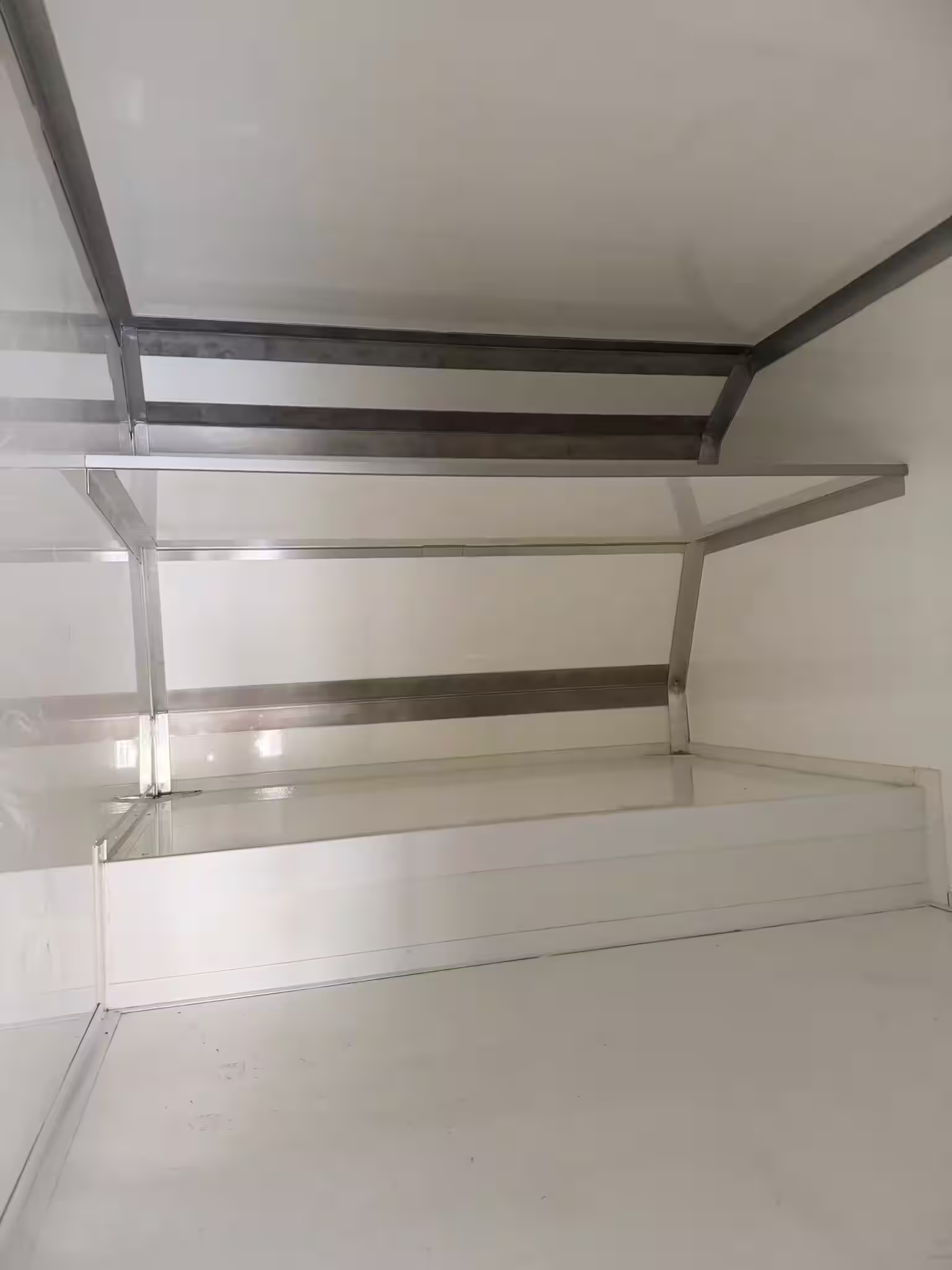

- Access door to the separate area in the vehicle neck including access level
(dimensions: H 2000 x W 750 mm) - Mechanical front support
- Complete LED outdoor lighting
A versatile and professional basis for transport, event vehicles or individual special projects.
